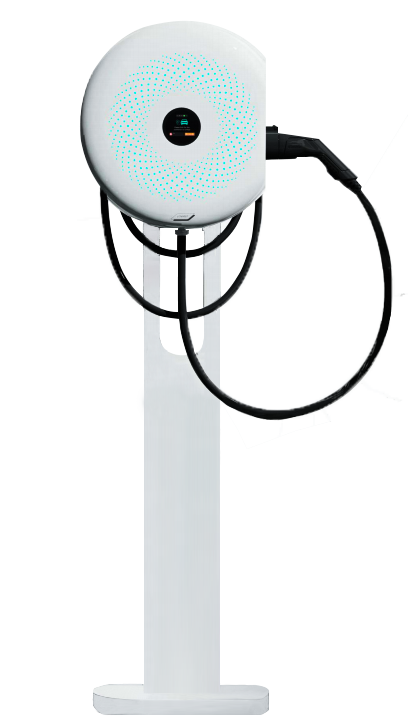

Product Profile: Featuring a fashionable design, the effortless AC charger is eye-catching and dependable, offering universal compatibility with EVs to elevate the modern lifestyle which is applicable in Home qarage, community, apartment parking,
Specifications:
| Output power rating and current | 9.6KW/40A | 11.5kw/48A |
| Rotary switch set current Limit options | 16A/32A/40A | 16A/32A/40A/48A |
| Weight | 13.2lbs(6kg) | 15.5lbs(7kg) |
| Plug Type | NEMA 6-50P/NEMA 14-50P | Hard wire |
| Charging Mode | Mode3 Charging,Level 2 | |
| Cable Type | Type 1 | |
| Mounting options | Wall and Post mounting | |
| Charging Status LEDs | Charging state | |
| Noise Level | ≤15dB | |
| Communication protocols | Modbus RTU RS485/ CT | |
| User Authentication | Plug and Charge | |
| Software upgrade | USB | |
| Operating temperature | 5%-95% | |
| Humidity | 5%-95% | |
| Altitude | <2000m | |
| Power supply voltage | 240VAC | |
| Crosswire section | Single phase:8AWG/6AWG | |
| Frequency | 60Hz | |
| Network Type | Single-Phase Systems Three -Wire | |
| Energy metering | 0.01 | |
| Over voltage protection | 240V+15% | |
| 40A+10%,5 seconds | ||
| Environmental Rating | Indoor and outdoor, NEMAType4 | |
| Dimensions(H*W*D) | L13.2*W11.7*D4.7in[L336*W299*H120mm] | |
| Cable Length | 18/25 ft(5.5/7.6m) | |
| Ambient conditions | Operating-22°F~122°F（-30°C-50°C） | |
| Storage-40°F~140°F（-40°C-60°C） | ||
| Operating Altitude | <6562 ft(2000 m) | |
| Color | White | |
| Certificates | UL, Energy Star, FCC | |
| Standard | UL 2594,UL 2231-1,UL 2231-2,SAE J1772 | |
| Warranty | 36months | |
