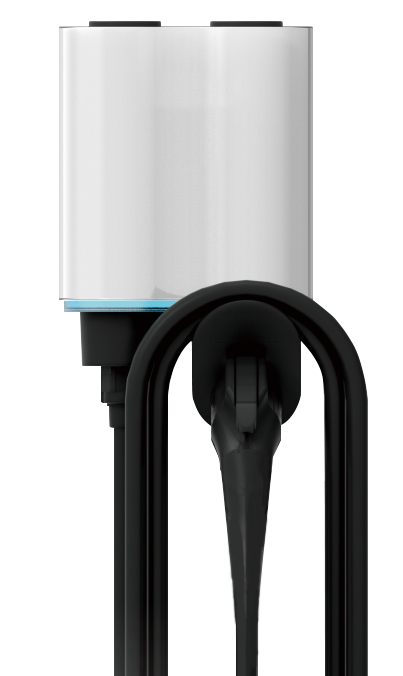

This product is an American standard AC charging station. It follows the principle of simplicity,intelligence and environmental protection to provide customers with convenient, safe, reliable,intelligent, friendly, durable and energy-saving charging station products.
Parameter
| Display Usage | Indicator Light Holding State: Blue |
| Charged State:Green Circle Running Full:Green | |
| Input/Output voltage | 240V |
| Working Frequency | 60HZ |
| Charging Power | Max 12KW(240*50A) |
| Electricity | 6~50A |
| Charge Efficiency | >98% |
| Applicable Scene | Indoor/Outdoor |
| Operating Ambient Temperature | -30°C~50°C |
| Storage Ambient Temperature | -40°C~80°C |
| Working Ambient Humidity | <95% |
| Working Altitude | <2000M |
| Type of Cooling | Natural cooling |
| Protection class | NEMA4 |
| Way to install | Wall-mounted/floor support type |
| Standard | FCC Part 15 Class B UL 2594, UL 2231-1, UL 2231-2 |
| Product Performance | Over voltage protection. |
| Under volage protection. Over load protection. | |
| Leakage Protection. Ground protection. Over temperature protection (85°C). Lightning protection. | |
| Short circuit protection. | |
| Flame retardant. | |
| Product Dimensions | 225*210*110mm |
| Weight | 7kg |
