Small in size, big on power
• Up to 600W, 23.5% module efficiency with high density interconnect technology
• Multi-busbar technology for better light trapping, lower series resistance, improved current collection and enhanced reliability
• Reduce installation cost with higher power bin and efficiency
• Boost performance in warm weather with low temperature coefficient and operating temperature

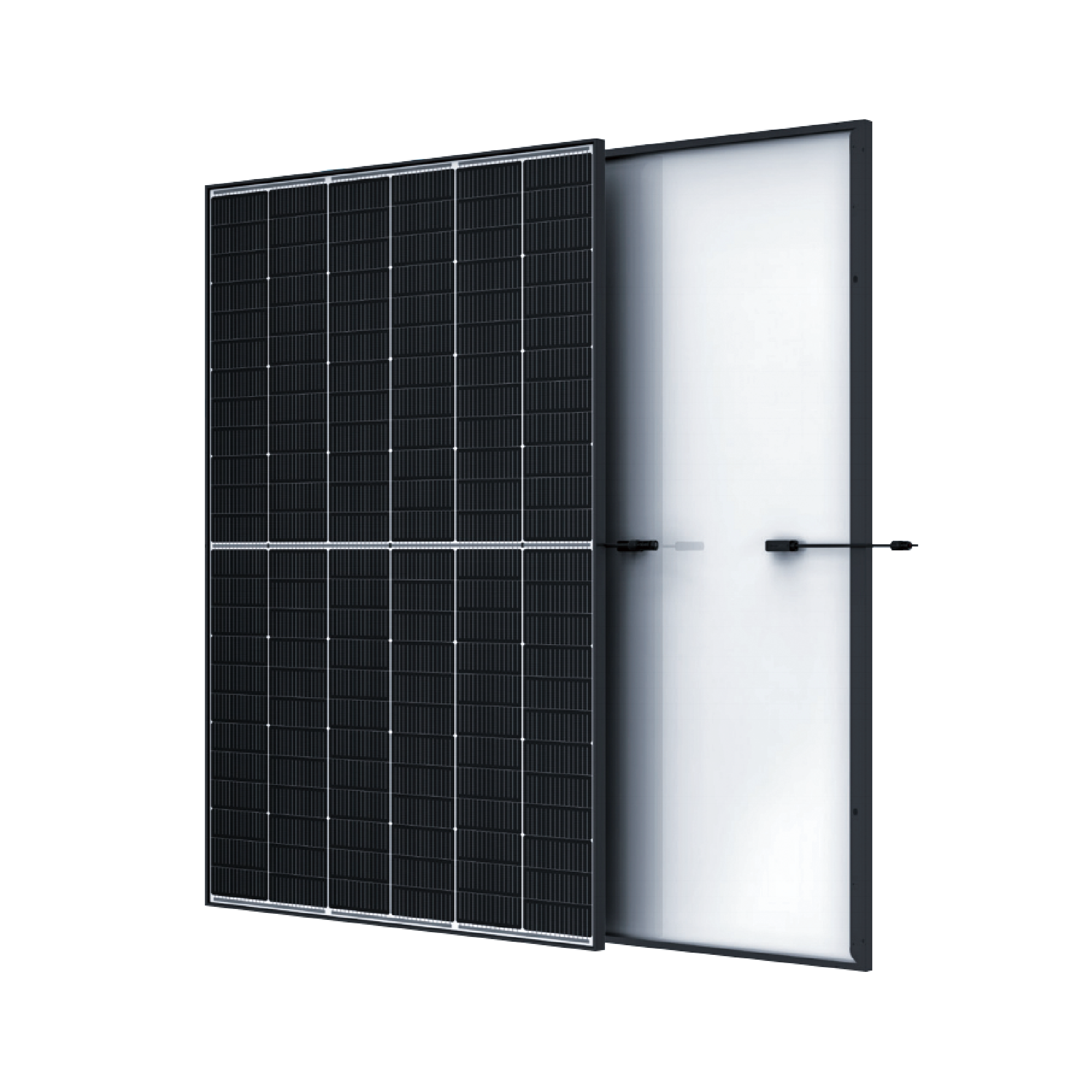

Dual-glass Design, more secure and sustainable
• Upgraded dual glass of Vertex S, less prone to micro-cracks and scratches on the back during installation
• Excellent fire rating, weather resistance, salt spray, sand dust, ammonia performance which is fully applicable in coastal, high temperature, humidity area and harsh environment
Ultra-low Degradation, longer warranty, higher output
• First-year degradation 1% and annual degradation at 0.4%
• Up to 15 years product warranty and 30 years power warranty
Universal solution for residential and C&I rooftops
• Easy for integration, designed for compatibility with existing mainstream inverters and diverse mounting systems
• Perfect size and low weight for handling and installation
• Most valuable solution on low load capacity rooftops (weight similar to backsheet version)
• Mechanical performance up to 5400 Pa positive load and 4000 Pa negative load
| Electrical Data(STC) | |||
| Peak Power Watts-PMAX (Wp)* | 500 | 550 | 600 |
| Power Tolerance-PMAX (W) | 0 ~ +5 | ||
| Maximum Power Voltage-VMPP (V) | 44.9 | 45.3 | 45.6 |
| Maximum Power Current-IMPP (A) | 11.03 | 11.08 | 12.03 |
| Open Circuit Voltage-VOC (V) | 53.1 | 53.4 | 53.9 |
| Short Circuit Current-ISC (A) | 11.03 | 11.6 | 12.01 |
| Module Efficiency η m (%) | 23.06 | 24.03 | 25.5 |
| Mechanical Data | |||
| Solar Cells | Monocrystalline | ||
| No. of Cells | 144 cells | ||
| Module Dimensions | 1762×1134×30 mm (69.06×43.15×1.18 inches) | ||
| Weight | 21.0kg (46.40 lb) | ||
| Front Glass | 1.6 mm (0.06 inches), High Transmission, AR Coated Heat Strengthened Glass |
||
| Encapsulant Material | POE/EVA | ||
| Back Glass | 1.6mm(0.06 inches), Heat Strengthened Glass | ||
| Frame | 30mm (0.06 inches) Anodized Aluminium Alloy, Black | ||
| J-box | IP 68 rated | ||
| Cables | Photovoltaic Technology Cable 4.0mm2 (0.006 inches2), Portrait: 350/280 mm(13.78/11.02 inches) Length can be customized | ||
| Connector | MC4 EVO2 / TS4 Plus / TS4* | ||
| Electrical Data(NOCT) | |||
| Peak Power Watts-PMAX (Wp)* | 500 | 550 | 600 |
| Maximum Power-PMAX (Wp) | 345 | 355 | 365 |
| Maximum Power Voltage-VMPP (V) | 43 | 45.6 | 47.5 |
| Maximum Power Current-IMPP (A) | 8.5 | 9.3 | 10.5 |
| Maximum System Voltage | 50.6 | 54.7 | 58.8 |
| Open Circuit Voltage-VOC (V) | 9.5 | 10.6 | 12.3 |
| Temperature Ratings | |||
| NOCT(Nominal Operating Cell Temperature) | 43°C (±2°C) | ||
| Temperature Coefficient of PMAX | 0.3%/°C | ||
| Temperature Coefficient of VOC | - 0.24%/°C | ||
| Temperature Coefficient of ISC | 0.04%/°C | ||
| Maximumratings | |||
| Operational Temperature | 40~+85ºC | ||
| Temperature Coefficient of PMAX | 1500V DC (IEC) | ||
| Temperature Coefficient of VOC | 20A | ||
| Product Warranty | |||
| Modules per Box | 36 pieces | ||
| Modules per 40’ Container | 936 pieces | ||
| Warranty | |||
| Product Workmanship Warranty | 15 year | ||
| Power Warranty | 25 year | ||
| First year Degradation | 0.02 | ||
| Annual Power Attenuation | 0.0055 | ||
