Am10KWI-HB-LV-SP - Amlien 10kW Single-Phase Hybrid Inverter, Low Voltage
401

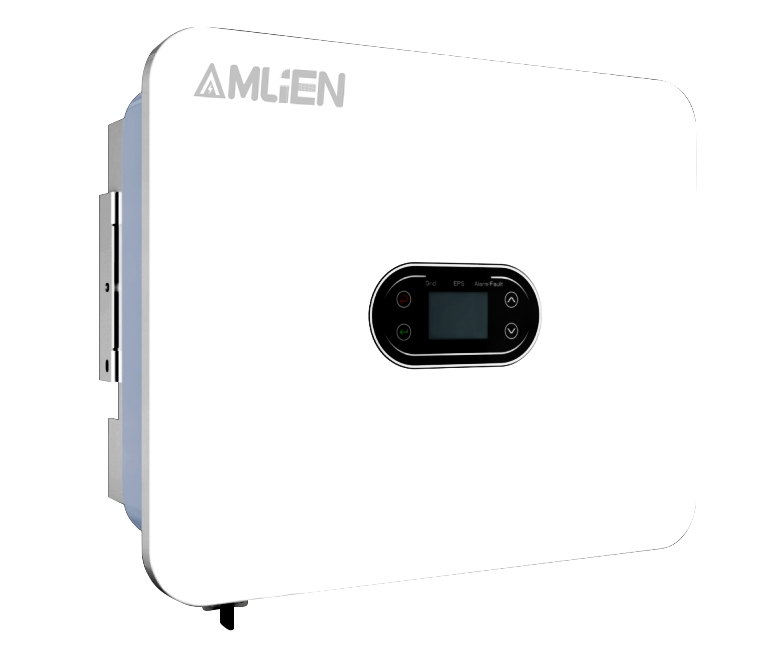

Am5KWI-HB-LV-SP - Amlien 5kW Single-Phase Hybrid Inverter, Low Voltage
| lnput Data (Dc) | LHHI5kW | LHHI7kW | LHHI8kW | LHHI10kW |
| Max. PV Input Power | 6.5kW | 9kW | 11kW | 13.5kW |
| Max PV Input Voltage | 600V | |||
| Start-up Voltage | 100V | |||
| Rated Voltage | 300V | 330V | 360V | 390V |
| MPPT Voltage Range | 100V~550V | |||
| Number of String per MPPT | 1|1 | |||
| Number of MPP Trackers | 2 | |||
| Max. Short Circuit Current per MPPT | 24A | |||
| Max. Current per MPPT | 16A | |||
| Output(EPS) | LHHI5kW | LHHI7kW | LHHI8kW | LHHI10kW |
| Max.Output Power | 5.4kVA | 8kVA | 9.5kVA | 11kVA |
| Max. Output Current | 20A | 20.9A | 22.7A | 27.3A |
| Peak Output Power，Time | 6kW, 10s | 6.9kW, 10s | 7.5kW, 10s | 7.5kW, 10s |
| Rated Voltage，Frequency | 230V, 50Hz | |||
| THDv (@Rated Power) | <3% | |||
| Switch Time | <10ms | |||
| LHHI10kW | ||||
| Output Data (Ac) | LHHI5kW | LHHI7kW | LHHI8kW | |
| Rated Output Power | 5.5kVA | 8kVA | 9.5kVA | 11kVA |
| Max. Output Power | 5.4kVA | 8kVA | 9.5kVA | 11kVA |
| Max. Output Current | 20A | 20.9A | 22.7A | 27.3A |
| Rated Voltage | 230V | |||
| Rated Frequency | 50Hz/60Hz | |||
| THDi(@Rated Power) | <3% | |||
| Power Factor | 0.8 leading ~ 0.8 lagging | |||
| General Data | LHHI5kW | LHHI7kW | LHHI8kW | LHHI10kW |
| Dimension (WxH x D) | 490 x 395x 200 mm | |||
| Weight | 20kg | |||
| Operating Temperature Range | 30°C~+50°C | |||
| Cooling Method | Natural | |||
| Protection Degree | IP65 | |||
| Max. Operating Altitude | 4000 m | |||
| Noise | < 25dB | |||
| Relative Humidity | 0~100% | |||
| Self-Consumption | < 10W | |||
| Battery | ||||
| Battery Type | Lithium, Lead-acid | |||
| Max. Charge / Discharge Current | 100A | |||
| Battery Voltage Range | 40V~60V | |||
| Communication | CAN | |||
| Efficiency | ||||
| Max. Efficiency | 0.985 | |||
| Efficiency | 0.972 | |||
| Battery Charge/Discharge Efficiency | 0.95 | |||
| Communication | ||||
| Communication | /CAN /WIFI /4G /LAN / BluetoothRS485 | |||
| Display | LCD | |||
| Standard Compliance | ||||
| Grid Connection Standards | EC 61727,IEC 62116,IEC 60068IEC 61683.CEI 0-21VDE 0126-1-1/A1 VFR 2014 UTE C15-712-1.NRS 097-2-1.MEA/PEA.C10/11,G98/G99 | |||
| Safety / EMC | IEC 62109-1,1EC 62109-2,EN 61000-6-1,EN 61000-6-3 | |||
| Protection | ||||
| Anti-islanding Protection | Yes | |||
| DC Reverse Polarity Protection | Yes | |||
| Residual Current Monitoring Unit | Yes | |||
| AC short Circuit Protection | Yes | |||
| Insulation Resistance Monitoring | Yes | |||
| Insulation Resistance Monitoring | Yes | |||
| Ground Fault Monitoring | Yes | |||
| Over Current Voltage Protection | Yes | |||
| Battery Soft Start Protection | Yes | |||
| Surge Protection | Type Il | |||
| AFCI Protection | Optional | |||
