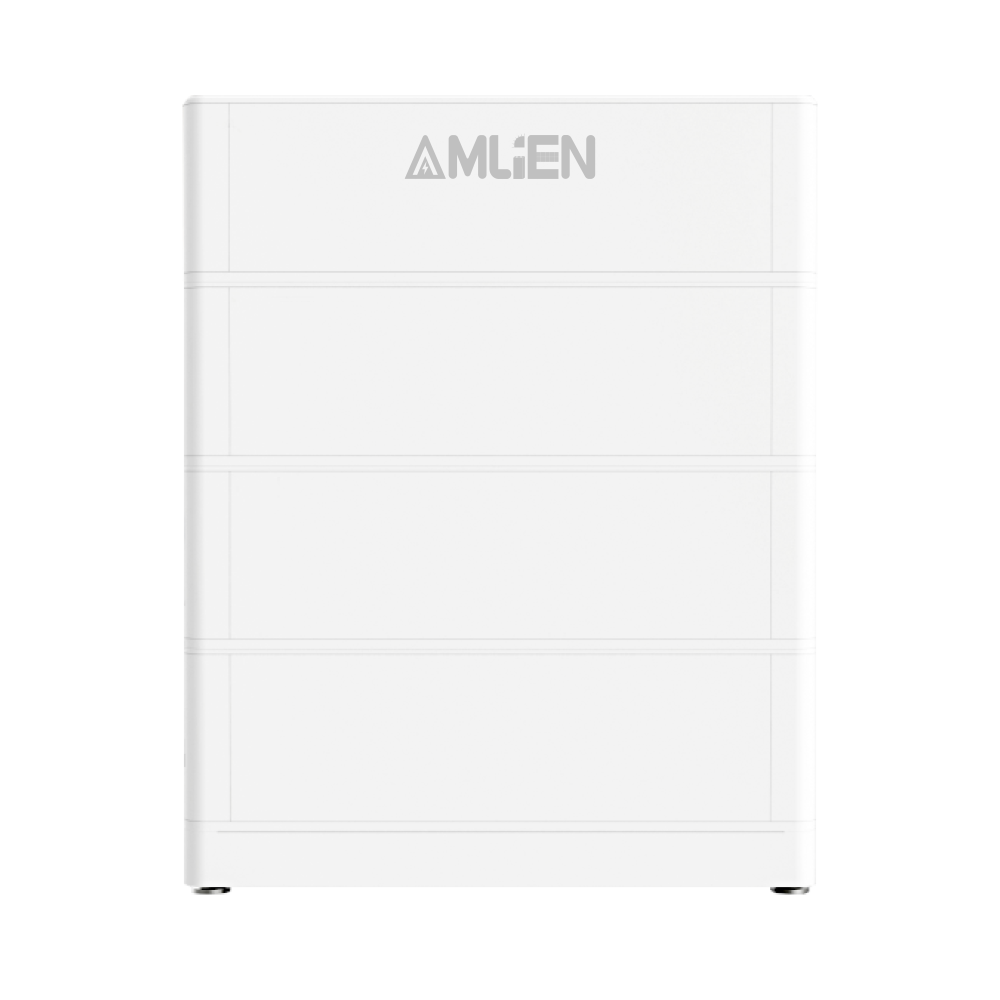

High Voltage Battery
Empowering a Sustanaible Future
Slim and space-efficient, saving installation space
Maximize savings on your electricity bill by charging during daytime and discharging during peak night hours
Lithium Iron Phosphate (LFP) Battery
Leverage cloud-based solutions to enable remote O&M and monitoring capabilitie
Intelligent BMS, providing complete protection
| Technical Parameters | Electrical Data | ||
| Battery Type | LFP | Dimensions(WxDxH) | 430 x 430 x2250 mm |
| Battery Module Capacity | 4.02kWh | Weight | <0.8T |
| Number of Modules | 1 | Installation Site | Indoor |
| Total Battery Capacity | 80.1kWh | IP Protection | IP68 |
| Nominal Voltage | 204V | Anti Corrosion Level | C4 |
| Operating Voltage Range | 180V~226V | Operation Humidity | 5%~95% (No condensing) |
| Charge/Discharge Rate | Max. 0.2C | Operation Temperature | -30°C~+50°C |
| DoD | 90% | Max.Operation Altitude | 4000>m (3000m derating） |
| Topology | Transformerless | Communication Port | Ethernet;CAN |
| IP Protection | IP65 | Communication Protocol | CAN;MODBUS TCP/IP |
| Cooling Method | Intelligent Air Cooling | Cooling Method | Air conditioner |
| Max. Operation Altitude | 3000m | Standards | IEC62619-2017;UN38.3;IEC61000-6-2/4 |
| PV Side | |
| Max. Input Voltage | 750V |
| MPPT Voltage Range | 300V~600V |
| Max. Current per MPPT | 24A |
| Number of MPPT | 2 |
| Number of Inputs Per MPPT | 1 |
| Battery Side | |
| Max. Input Voltage | 450V |
| Min. Input Voltage | 300V |
| DC Voltage at Nominal OperationC | 400V~450V |
| Max. DC Current | 40A*2 |
| Max. DC Input Power | 44kW |
| Number of DC Inputs | 1 |
| AC Side(On Grid) | |
| Nominal AC Output Power | 40kW |
| Max. AC Output Power | 44kVA |
| Max. AC Current Nominal AC Voltage | 64A |
| Nominal AC Voltage | 320V |
| AC Voltage Range | 272V~352V |
| Nominal Grid Frequency/Frequency Range | 50/60Hz±5Hz |
| THDv | <3%(100% Load) |
| Adjustable PF Range | -1(Lagging)~1(Leading) |
| AC Side(Off Grid) | |
| Nominal AC Voltage | 168/320V±3%; 3L+N+PE |
| THDv | <3%(Linear Load) |
| Nominal Grid Frequency/Frequency Range | 50/60Hz |
| Nominal AC Output Power | 40kW |
| Max. AC Output Power | 44kVA |
| Efficiency | |
| Max. Efficiency | 99.5% |
| Protection | |
| Reverse Connection Protection | Yes |
| DC Switch | Yes |
| Over-Temperature Protection | Yes |
| Grid Monitoring/ Earthing Fault Detection | Yes |
| Insulation Monitoring | Yes |
| DC/AC Surge Protection | DC Type II;AC Type III |
